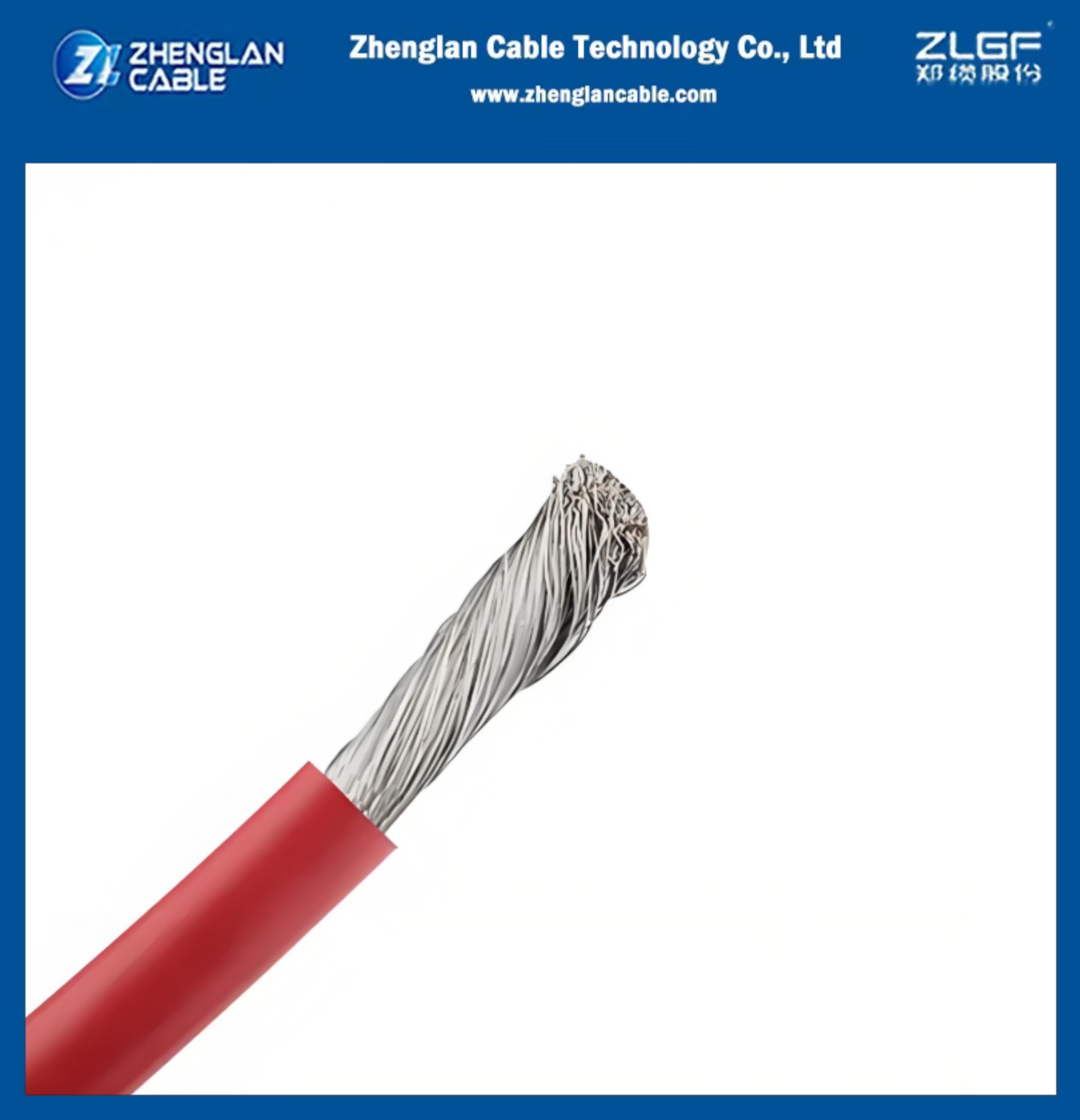

Photovoltaic Cable DC 1.5KV CU/XLPO/XLPO 4mm2 Tinned coppersolar cable H1Z2Z2-K

Name: Photovoltaic Cable DC 15KV CUXLPOXLPO 4mm2 Tinned coppersolar cable H1Z2Z2K
Brand: Zhenglan Cable
Price: 1 USD

Quality Photovoltaic Cable DC 1.5KV CU/XLPO/XLPO 4mm2 Tinned coppersolar cable H1Z2Z2-K for sale

Brand Name : Zhenglan Cable

Model Number : solar cable 4mm2

Certification : 3C，ISO 9001:2015，ISO 14001:2005

Place of Origin : China

MOQ : 5000meters single color

Price : Negotiable

Payment Terms : T/T,L/C,,Western Union

Supply Ability : 80000M/DAY

Delivery Time : 7-15DAY

Packaging Details : 1000m/drum

Material : Tinned Copper

Insulation : cross linkedin polyolefin

Outer sheath : cross linkedin polyolefin

Size : 4mm2

Standard : EN50618, EN50332-1

Voltage : DC 1.5KV

Contact Now

Description

Single core, solar (photovoltaic) cable with a conductor cross-sectional area of 4mm² and a nominal current carrying capacity of 55A at 60°C.

Manufactured to European standard H1Z2Z2-K with a flexible, stranded, tinned copper conductor and a black, UV resistant sheath to prevent fade and degradation.

Ideal for small to medium sized solar panel installations on campervans, motorhomes, caravans and boats.

Specifications

Voltage rating: 1500V DC
Nominal current rating: 55A (up to 60°C - derate at higher temps)
Nominal conductor cross sectional area: 4.0mm²
Maximum overall cable diameter: 5.6mm
Conductor material: Class 5 flexible tinned copper
Conductor resistance @ 20°C: 5.09 Ω/km
Insulation material: Halogen-free cross-linked compound
Sheath material: Halogen-free cross-linked, flame retardant compound
Sheath insulation colour: Black
Minimum band radius: 5 x OD
Temperature rating: -40°C to +90°C
Standards: See datasheet under the Manuals & Guides tab

Nominal Section (mm²)	Nominal Stranding (mm)	Core Structure No./Dia. (mm)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Max.O.D. (mm)	Reference Weight (kg/km)
1×4.0	56/0.30	2.59	1.14	0.82	6.4	87
